Custom Micro Switch UL with Lever Actuator t125 5e4

FOB Reference Price:Get Latest Price
  • 1000 - 4999
    US $0.39
  • 5000 - 9999
    US $0.31
  • >=10000
    US $0.23
Supply Ability:
20000 Piece/Pieces per Day
Port:
Shenzhen, Shanghai
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
GANGYUAN
Model Number:
G20-16EN02-70-06
Max. Current:
16A
Max. Voltage:
125/250VAC
Operating Temperature:
25 ℃ ~+125 ℃
Protection Level:
Safe
Prouct type:
Micro switch
Certificate:
UL
Operating force:
70gf±50gf
Life time:
50,000cycles
Soldering temperature:
260 ℃±5 ℃ 5s
Lever length:
14.45/15.5/19.85mm or at your request
Terminal silver point:
Silver alloy
Circuit code:
SPST
Terminal Type:
Quick-connect
Packaging & Delivery
Packaging Details
500PCS/bag, 2bags/box, 20boxes/ carton
Reference GW: 18KG NW: 17KG
Reference Carton size: 45*35*28cm
Delivery Time
5~7 working days
Product description

   Custom Micro Switch  UL with Lever Actuator t125 5e4



P/NG20-16EN02-70-06
Lever length14.45/15.5/19.85mm or at your request
Rating125/250VAC   16A
Operating Force70±50gf
Life Time50,000 Cycles
Operating Temperature Range-25℃~+125℃
Dielectric Withstanding Voltage1500V AC 1Min
CertificateUL,ENEC,CQC
Circuit CodeSPST
Insulation Resistance≥100MΩ
Contact Resistance≤200mΩ
Soldering Temperature260±5℃ 5s

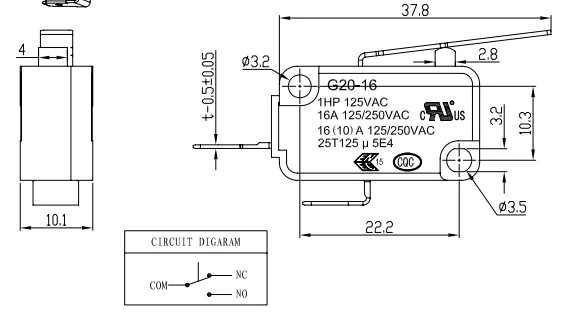

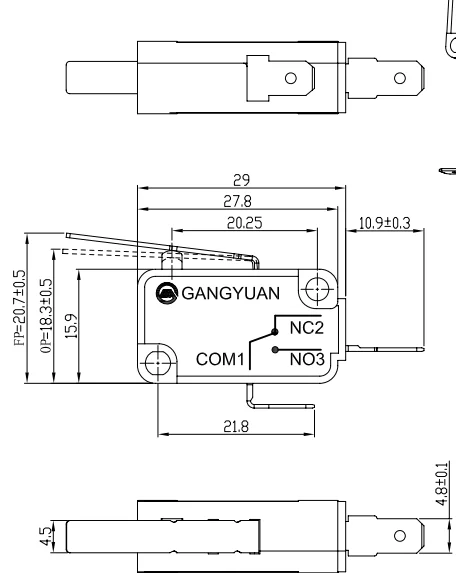

Drawing



Application:



Micro switch can be widely used in Mouse, Security products, Doorbell, Automotive electronics,Communication equipment, Military products, Measuring and test instrumentsGas water heater,Gas burner, Small home appliancesMicrowave Oven, Electric rice cookerFloating ball equipment match, Medical apparatus and instrumentsBuilding AutomationElectrical tool and General Electric, Wireless radio sets.
