Gangyuan Manufacture Microswitch with Roller t125 5e4

FOB Reference Price:Get Latest Price
  • 1000 - 4999
    US $0.39
  • 5000 - 9999
    US $0.31
  • >=10000
    US $0.23
Supply Ability:
20000 Piece/Pieces per Day
Port:
Shenzhen, Shanghai
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
GANGYUAN
Model Number:
G20-16EN03-70-07
Max. Current:
16A
Max. Voltage:
125/250VAC
Operating Temperature:
25 ℃ ~+125 ℃
Protection Level:
Safe
Prouct type:
Micro switch
Certificate:
UL
Operating force:
70gf±50gf
Electrical Life:
50,000cycles
Soldering temperature:
260 ℃±5 ℃ 5s
Contact:
Beryllium bronze
Lever:
Stainless steel
Lever length:
14.45/15.5/19.85mm or at your request
Terminal:
Brass
Mechanical Life:
1,000,000 cycles
Packaging & Delivery
Packaging Details
500PCS/bag, bag/box, 20boxes/ carton
Delivery Time
5~7 working days
Product description

 Gangyuan Manufacture Microswitch with Roller t125 5e4



P/NG20-16EN03-70-07
Lever lengthat your request
Rating125/250VAC   16A
Operating Force70±50gf
Life Time50,000 Cycles
Operating Temperature Range-25℃~+125℃
Dielectric Withstanding Voltage1500V AC 1Min
CertificateUL,ENEC,CQC
Circuit CodeSPST
Insulation Resistance≥100MΩ
Contact Resistance≤200mΩ
Soldering Temperature260±5℃ 5s

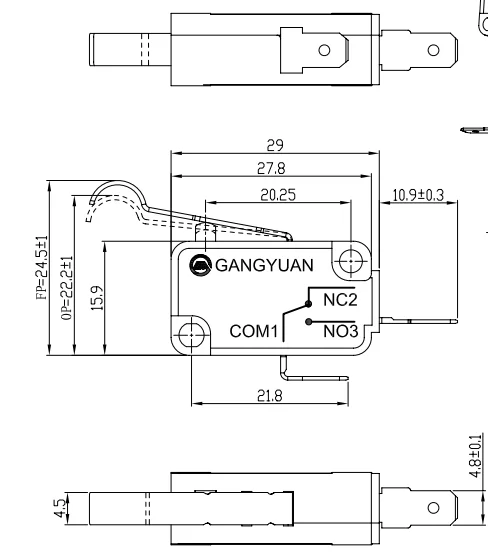

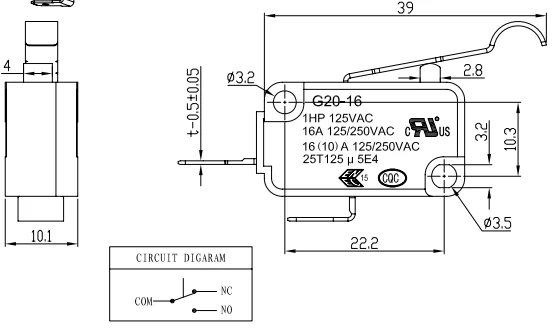

Drawing



Application:



Micro switch can be widely used in Mouse, Security products, Doorbell, Automotive electronics,Communication equipment, Military products, Measuring and test instrumentsGas water heater,Gas burner, Small home appliancesMicrowave Oven, Electric rice cookerFloating ball equipment match, Medical apparatus and instrumentsBuilding AutomationElectrical tool and General Electric, Wireless radio sets.



More Micro switches



Packing&Shipping



 Packing: 500pcs/bag, 1bag/box, 20boxes/carton



Payment term: T/T, D/P, L/C, Paypal etc.



 Shipment:Airline express ,sea way, express, etc.



Why choose us



1.Experience of more then two decades in switch manufacturing.

2.Two thousands invention patents and 47 utility model patents.

3.Assembly process in 100,000 grade dust-free workshop.

4.Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Customers





Factory Certification





R&D Team in Shenzhen Center

*OEM&ODM services, all of your ideas in logo printing and product design are welcome here.

Company information



Gangyuan Electronics was founded in 1994, focusing on tact switches and other electronic switch ,sockets, transformers, relays series of product development, production and sales. Our Products are mainly used in household appliances, 3C (computer, communications, consumer electronics), office equipment, medical, security, personal care, automotive electronics, industrial control and other fields.

Headquartered of Gangyuan based in Yueqing City, Zhejiang Province, three manufacturing plants located in Yueqing, Zhejiang, Hubei Guangshui, Shenzhen, Guangdong. Has an independent research and development centers in Shenzhen. And Shenzhen,Hefei, Hong Kong, Singapore sales subsidiaries. in the domestic Beijing, Shanghai, Guangzhou, Huizhou and overseas South Korea, Brazil, with sales offices, more than 1,000 employees worldwide.

Sale Chart



Our services

1.Excellent R&D team,your new design of tactile switch  is welcome.

2.When the quantity was enough,we can refund the mould fee.

3.Available switch samples is free for checking the quality, samples date 3 working days.

Any item you're interested in, kindly inform us or send us your drawing or pictures, more details and best price will be provided upon receipt of your reply ASAP.
